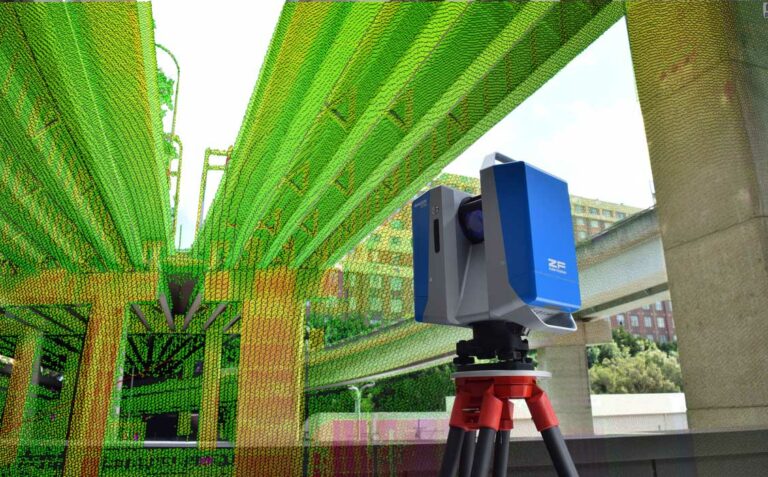

Z+F IMAGER 5016 3D Laser Scanner

Complete Solution Including Training

  • Z+F Imager 5016A 3D laser scanner
  • Laser Control Office software
  • Laser Control Scout
  • 2 Days’ training with Aptella

The terrestrial 3D laser scanner Z+F IMAGER® 5016A combines compact and lightweight design with state-of-the-art 3D laser scanning surveyor technology – allowing the user to reach new levels.

  • Class leading precision measuring 2.187 million points per second
  • Absolute precision with optimised levelling via IMU integration
  • Best ever auto-registration accuracy with advanced navigation

Reaching new levels

The Z+F IMAGER 5016 3D Laser Scanner, combines compact and lightweight design with state-of-the-art laser scanning technology – allowing the user to reach new levels. The new phase-based laser scanner is equipped with an integrated HDR camera, internal lighting and positioning system – already proven from its predecessors, the Z+F IMAGER 5010C and the Z+F IMAGER 5010X. However, all components have been further developed and adjusted to the new design, resulting in even better scanning results and a more efficient workflow.

Housing

  • Ergonomic streamline design
  • Additional grip with two handle
  • Makes setup with high tripods or overhead applications easy
  • Protection class IP 54, protection against splash water and dust
  • Operation temperature -10 °C … +45 °C (14°F … 113°F)
  • Visual feedback by illuminated power switch
  • Easily accessible plugs for external power supply or ethernet data exchange

Reaching New Levels

Z+F IMAGER® 5016A

Learn More About The Z+F IMAGER 5016 3D Laser Scanner

Enquire now and one of our dedicated 3D laser scanning experts will be in touch with you soon

Very High Scan Rate
Optimized Leveling
High Accuracy Of Navigation
Technical specifications

blue workflow®

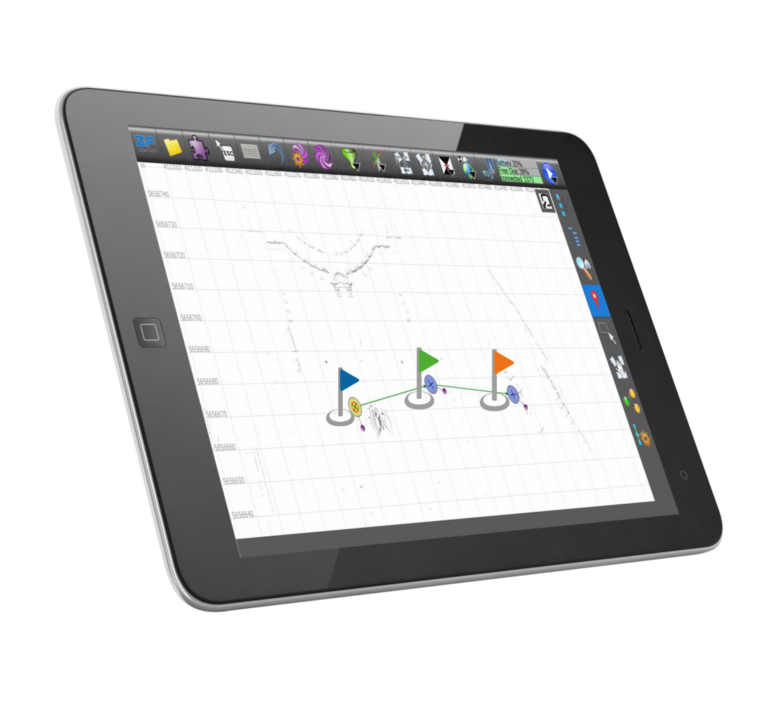

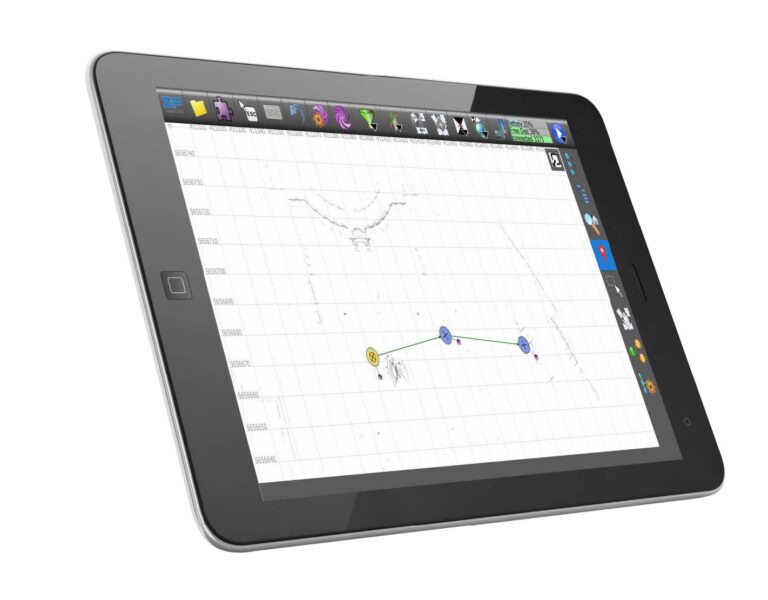

Real-time registration on-site
Data and target verification
Multi-scanner support
IMU optimized leveling

Laser system

Laser class: 1
Beam diameter / divergence: ~ 3.5 mm @ 1m / ~ 0.3 mrad (1/e2, half angle)
Measurement range: 0.3 m … 365 m (ambiguity interval)
Range resolution: 0.1 mm
Data acquisition rate: Max. 2.187 million pixel/sec.
Linearity error: ≤ 1 mm + 10 ppm/m
Range noise: 0.25 mm rms

HDR camera

Type: HDR, automatic, up to 11 exposures
Recording time: approx. 2 min, parallax free
Focus area: 1m – ∞
Panorama resolution: ca. 80 MPixel
Illumination system: integrated LED spotlights, 700 lm



Deflection unit

Deflection system: completely encapsulated rotating mirror with integrated HDR camera and LED spots
Vertical field of view: 320°
Horizontal field of view: 360°
Angular resolution, vertical: 0.00026° (0.93 arcsec)
Angular resolution, horizontal: 0.00018° (0.65 arcsec)
Vertical accuracy: 0.004° (14.4 arcsec) rms
Horizontal accuracy: 0.004° (14.4 arcsec) rms
Rotation speed: max. 55 rps (3,280 rpm)

Rapid picture capturing

Capturing colour information is very important in many fields of application. Generating a full HDR panorama (80 MPixel) only takes about 3:30 min. – which is the shortest capturing time for integrated HDR cameras in terrestrial laser scanners on the market. Combined with quick scanning times, this allows the user to rapidly generate geometric and colour data.

Integrated LED spots

The new HDR camera of the Z+F IMAGER 5016 is now equipped with integrated LED spots, which grant additional flexibility when scanning. No more external lighting sources are necessary when capturing images in dark environments.

Internal data storage and data transfer

The scanner has internal storage capacities for 128GB of data. Data can rapidly be transferred either by using the SD-card slot, ethernet link or WiFi connection. The WiFi operates to the 802.11a/n/g standard and in the frequency range of 2.4GHz / 5GHz
