The unique C.Scope Plastic Pipe Tracers are designed specifically to allow SMALL diameter, non-metallic pipes to be traced.
Developed as a result of requests from the British gas industry the C.Scope Plastic Pipe Tracers are the smallest diameter product on the market and can be successfully inserted into pipes when nothing else fits. Their unique construction gives unparalleled reliability and yet allows both ‘line’ tracing AND the all important ‘end’ tracing using the remarkable Sonde technology housed at the very tip of the Tracers.
Comes in 20 metre or 50 metre lengths.
The C.Scope 8KHz & 33KHz Sonde is a small battery powered transmitter which, in typical use, would be screwed onto the end of a drain rod (a range of drain rod adaptors are available), and pushed down a pipe so that the pipe direction can be traced using the C.Scope locator set to ‘Signal Generator Mode’. The location of a pipe blockage can be identified using this system, with enormous cost saving potential.
The Signal Injector is an accessory that allows the Signal Generator signal to be safely applied to an electrical system via a conventional 3-pin power socket. This signal will then be detectable on the buried supply cable outside the building.
The C.Scope Signal Clamp is a safe and straightforward way to apply the Generator signal to a cable or small pipe to enable precision tracing of this service.
The CS880 Metal Cover Locator is a metal detector that will locate lost or hidden metal objects. It is most commonly used for locating manhole covers through tarmac and grass. It can be used successfully to find stopcock covers, steel reinforcement rods in concrete road surfaces (rebar), fuel tanks, valve heads and metal pipes or any metallic objects that are buried under tarmac or earth.

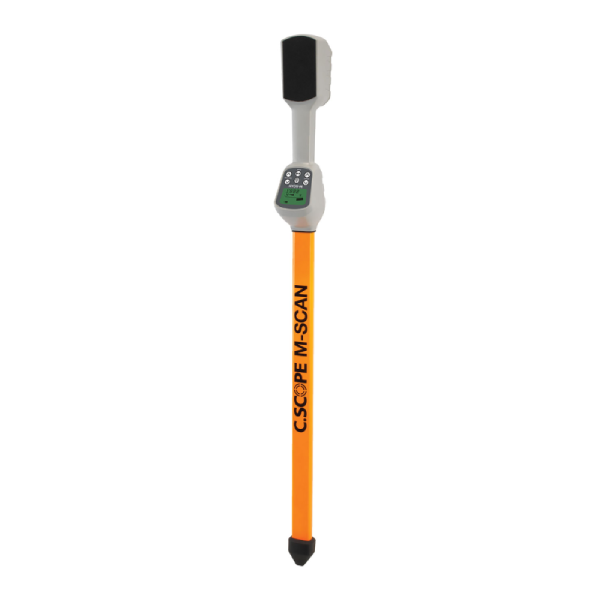

The M-SCAN Magnetometer can locate deeply buried ferrous objects such as manholes, septic tanks, valve boxes, line identification markers, survey and boundary marker pegs and cast iron gas and water pipes and joints.
The M-SCAN detects ferrous (magnetic) metals at a much greater depth than conventional metal detectors. It is capable of detecting objects up to 5m deep, depending on signal strength.
