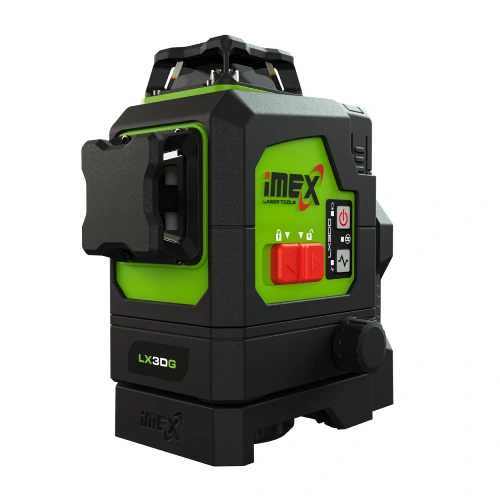

iMEX LX3DG 3-Dimension Multi line Laser Green Beam

The Imex LX3DG is a line laser with everything. Now with PreciseALIGN™ fine adjustment to get that perfect 90-degree set out.  With three, 360 degree lines and an offset to ensure uninterrupted laser lines, this versatile green beam laser is the ultimate for all interior alignment tasks. Series II features an all-new quick release lithium battery platform, compatible across all Series II LX models, plus new rubberised housing for a comfortable, non-slip grip.

  • NEW PreciseAlign™ fine adjustment to pivot laser
  • NEW 5.2Ah lithium battery pack – swaps to all LX series II models.
  • NEW rugged housing with non-slip rubberised moulding
  • 360 degree horizontal and vertical laser lines
  • Ultra visible green beam technology
  • Pulse mode to work with laser detector
  • 360 degree turntable and magnetic bracket
  • Self levelling

Visit manufacturer page

Request more information about this product



mex LX3DG Green Beam Specifications
Self levelling range 4° ± 1
Out of level indication  laser blinks on/off
Laser accuracy   ±3mm @10m
Laser class       Class 2
Laser wavelength   520 ± 10 nm
Laser distance  20m light-dependent
Laser distance with optional detector  50m
Laser fan angle -lines  360°  V 360°
Power source  5.2 Ah lithium-ion
Charging  type USB-C
Run time – all beams and dots   hrs
Control switch   1 button, pendulum lock
Unit adjustment Precise align, fine adjustment screw
IP Rating     IP54
Operating temperature   -10° to +50°C
Storage temperature     -20° to +70° C
Kit Inclusions lithium battery, USB-C, alkaline batteries,  magnetic bracket operating manual, plastic carry case

See manufacturer website
