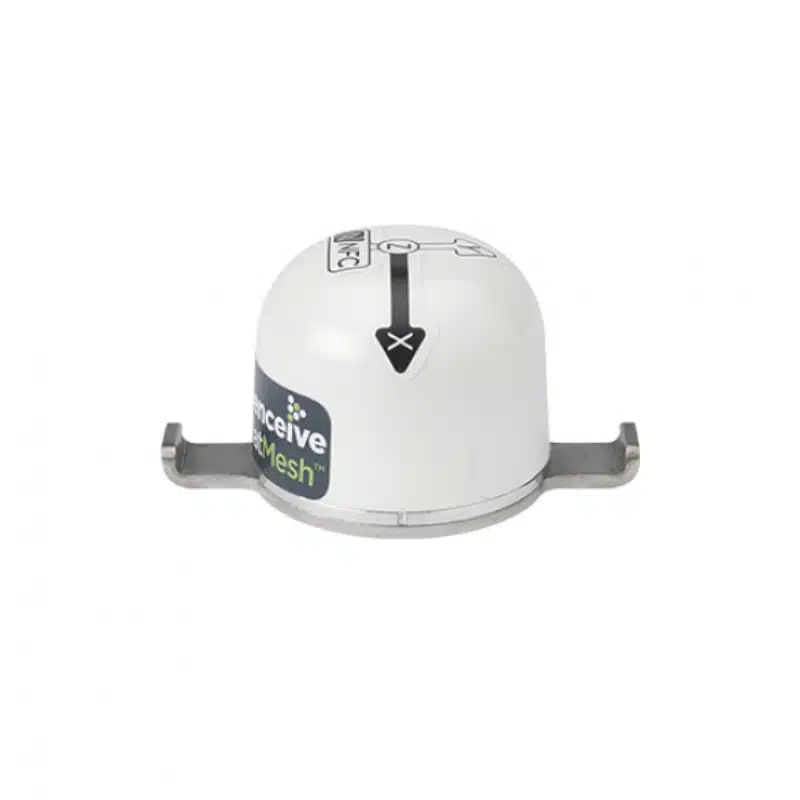

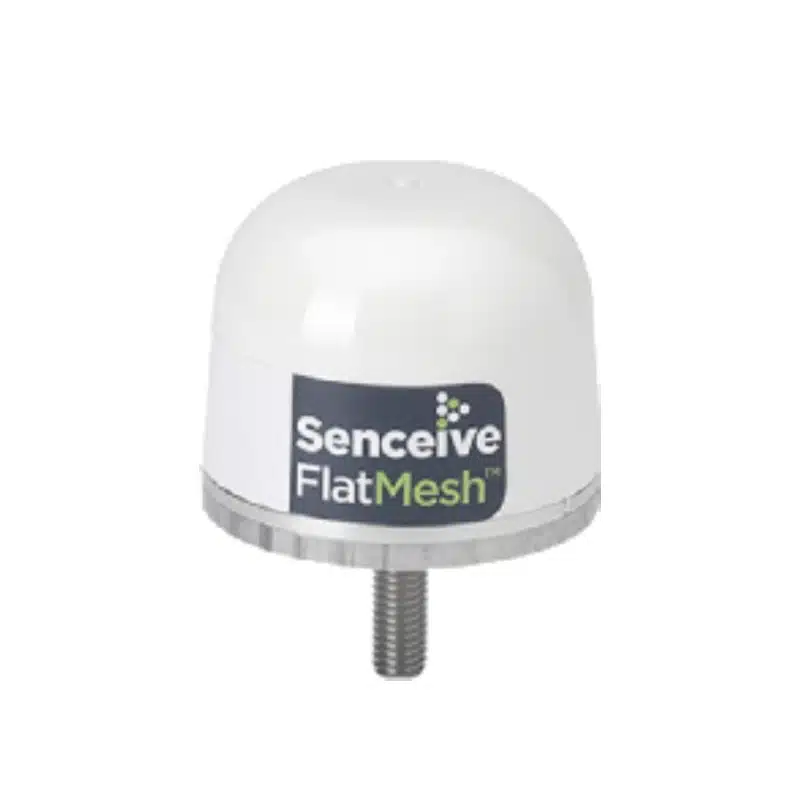

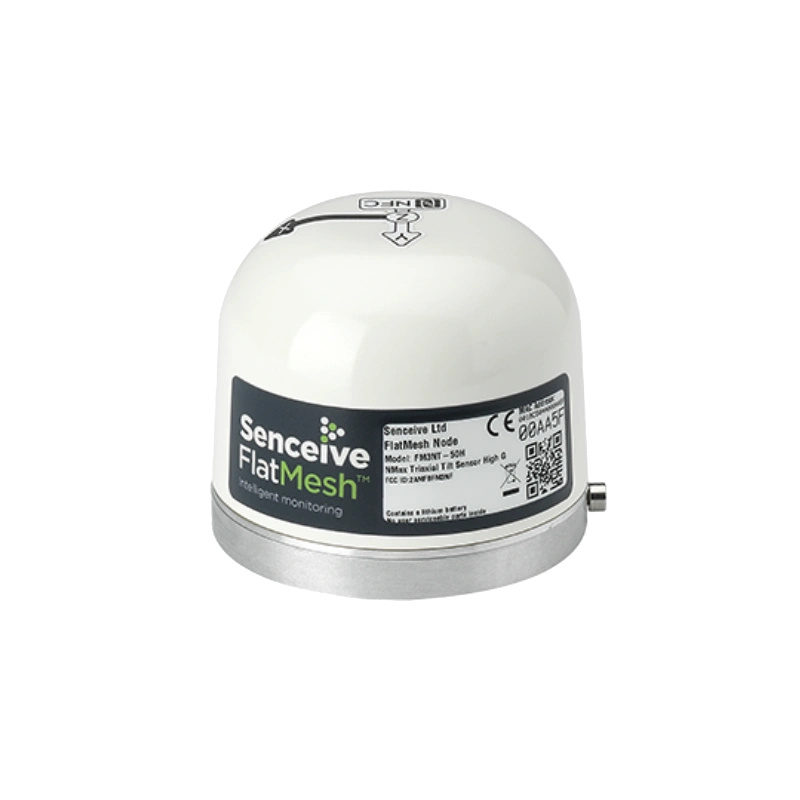

FlatMesh NanoPlus Sensor

The FlatMesh NanoPlus is an extremely high precision and exceptionally stable three axis tilt sensor which reports its measurements through Senceive’s FlatMesh wireless communications network to a FlatMesh Gateway.

The FlatMesh NanoPlus comes with Near Field Communication (NFC)™ capability, enabling on the spot interactions with the node.

Request more information about this product
Categories:
Brand:

Description

Key features

  • Integrated triaxial tilt sensor
  • Extremely low noise performance
  • Extremely low profile
  • Resolution of 0.0001° (0.0018 mm/m) and repeatability of ±0.0005° (±0.009 mm/m)
  • Operational in any orientation
  • Integrated battery
  • 5 year battery life, including when acting as a relay node within the mesh communications network
  • Integrated temperature sensor
  • Versatile mounting options
  • Waterproof to IP67 / IP68
  • NFC capability, enabling on the spot adjustments to the node
  • “Sleep mode” functionality

Specifications

FlatMesh NanoPlus Sensor Node FM3NT-30

Physical Specifications

Parameter Value
Diameter 58 mm
Height 45 mm
Total Mass 110 g
Housing Material Polycarbonate and Aluminium
Protection (BS EN 60529: 1992 + A2: 2013) IP68 at 2m 24 hours
Mounting Options Magnetic, screws, gluing
Operating Temperature Range -40°C to +85°C

Tilt Sensor Specifications

Parameter Value
Resolution 0.0001° (0.00175 mm/m)
Repeatability ±0.0005° (±0.0087 mm/m)
Range ±90°
