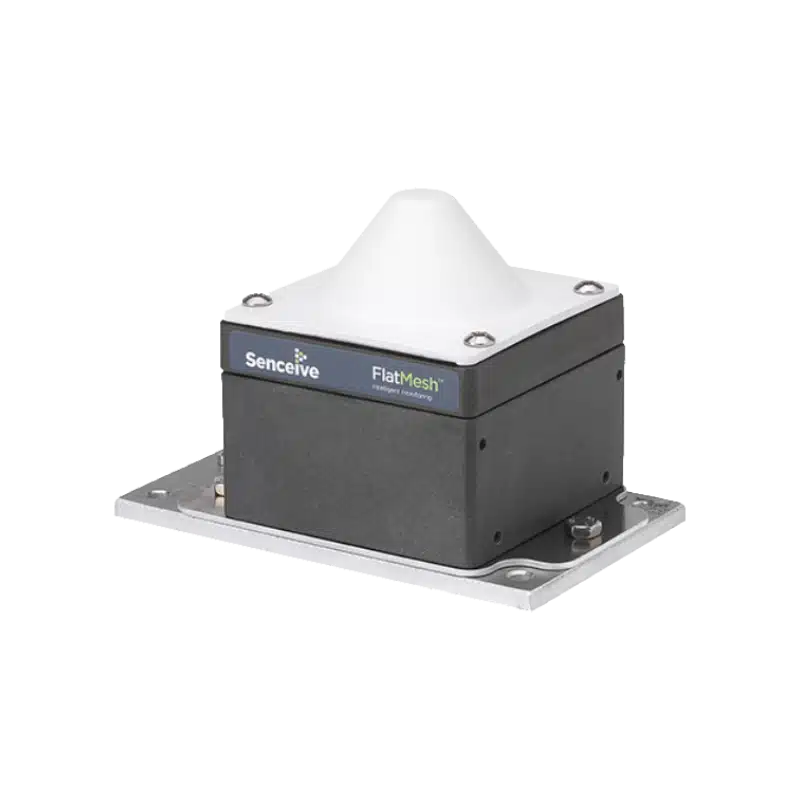

The Triaxial Tilt Sensor Node is an extremely precise and exceptionally stable three axis wireless tilt meter for use in a variety of sectors.
Variable reporting rates, a robust design and up to a 15 year battery life make this wireless 3 axis tiltmeter suitable for many environments and applications. The wireless tiltmeter nodes transmit precise readings from the site via one of our wireless communication platforms (FlatMesh or GeoWAN) via a Gateway. Visualise and interact with your data online using the Senceive WebMonitor platform or third party software.
This wireless 3 axis tiltmeter has been successfully used in many applications, including those measuring:
Features
| Parameter | Value |
|---|---|
| Dimensions excluding antenna | 90 x 90 x 60 mm
90 x 96 x 60 mm (including vent) |
| Total Mass | 0.6 kg approx |
| Housing Material | Die cast aluminium |
| Protection (BS EN 60529: 1992 + A2: 2013) | IP66 / IP67
IP68 at 1 m for 24 hours |
| Mounting Options | 1/4” UNF holes in bottom, M4 blind holes in sidePlates and brackets available for magnetic fixing, trackbed, stake and pole mounting, and many other applica-tions1/4″ UNF holes in bottom. M4 blind holes in side.
Plates and brackets available for magnetic fixing, trackbed, stake and pole mounting & many other applications |
| Operating Temperature Range | -40°C to +85°C
Sensor accuracy is reduced slightly at temperatures below -25°CSensor accuracy is reduced slightly at temperatures below -25°C |
| Parameter | Value |
|---|---|
| Resolution | 0.0001° (0.00175 mm/m) |
| Repeatability (-IX variant)
Repeatability (-IXH variant) Range |
±0.0005° (±0.0087 mm/m)
±0.0025° (±0.0436 mm/m) ±90° |
