Name: Trinity Pro Drone
Brand: Quantum Systems - Aptella
SKU: 0
Availability: InStock
Rating: 4.9 (250 reviews)

Description

Future-proof investment

The Trinity platform was introduced to the market in 2018. With more than 60,000 flight hours on a global scale it has proven its performance, accuracy, and reliability. The Trinity Pro incorporates the latest technology: The new Quantum-Skynode autopilot and the Linux misson computer bring computing power and increased internal storage as well as enhanced connectivity onboard the aircraft. This allows downstream integration of next generation cameras, but also of logging, simulation and AI capabilities.

Easy and safe operations

Trinity Pro is combined with our proprietary mission control software QBase 3D. They form a completely integrated system. During field operation, Trinity Pro gives the operator peace of mind. The new autopilot has the latest safety features, ensuring the UAV is flying in the safest possible way. This includes automatic self-diagnostics, terrain awareness, wind simulation and AI powered “return to home”. Potential detected risks are reported during mission planning and before take-off. Future industry specific software connections will also fully integrate with the system and make post-processing work easier. Users can create application-specific reports and analyses without having to spend time establishing new and complicated processes.

Growth-enabling versatility

With the ability to perform in the most challenging environmental conditions, Trinity Pro captures more data per mission than almost any other comparable drone on the market. Trinity Pro also comes with the largest range of integrated sensors in the industry, which are simply “plug and play”. The constant expansion of our software solutions, and the proprietary nature of our software stack allows us to push the envelope for both the drone’s capabilities, and the operational and workflow features.

High uptime, maximized outcome

Quantum Systems has a proven track record of 60,000+ hours of flight with the Trinity platform. The Trinity Pro takes all the advancements in safety and reliability from this and takes it a step further. With the Quantum-Skynode autopilot the Trinity Pro performs enhanced system monitoring of all onboard systems to ensure perfect operations and predict maintenance. The new Quantum Systems Customer Portal is ready to guide new users through all processes and operations with online material and courses. Our world-class support, service, and training team are standing by and ready to help in case more help is needed.

Downloads

Brochure Trinity Pro Tech Sheet Product Presentation

More Features

Quantum-Skynode autopilot

The new Quantum-Skynode autopilot brings computing power, increased internal storage and enhanced connectivity onboard the aircraft. Downstream integration of next generation cameras, AI capabilities and application specific software connections for better streamlined workflows becomes a simpler matter. New capabilities can be added as the technology evolves.

QBase 3D

Trinity Pro and our QBase 3D software form a completely integrated system that lets you plan and execute your missions with ease. Benefit from cutting-edge safety features such as extensive pre-flight checks, automatic wind simulation and advanced terrain following.

Trinity Pro Cameras

Trinity Pro currently comes with six different fully integrated cameras, including RGB, oblique, multispectral and LiDAR. They are easy to swap using the quick-lock mechanism of the payload compartment. The entire system architecture allows easy downstream integration of next generation cameras and simpler workflows.

90 Minutes Flight Time

Due to its refined aerodynamics, the Trinity Pro uses less energy and achieves unmatched flight times of 90* minutes and longer. During flight, it can cover large areas (700 ha/ 1,730 acres) or long corridors (100 km/ 62 miles), making it the surveying tool of choice for a broad variety of applications.
*Subject to export regulation

Easy-to-swap sensors

Trinity Pro comes with the largest choice of sensors, compared to other fixed-wing UAVs in the market. And they are very easy to swap. The Quantum Systems payload compartment allows for an easy swap of sensors within seconds using the quick-lock mechanism. The sensors are seamlessly integrated to support mission planning in QBase 3D, allowing frequent changes in the surveying application. Choose from RGB, Oblique, multispectral and even LiDAR.

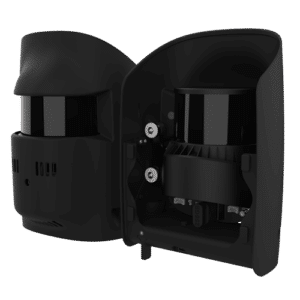

Drone-based LiDAR technology

Trinity Pro comes with the largest range of sensors in the industry, which are simply “plug and play”. The Qube 240 LiDAR scanner was introduced in 2021, which has been transformative for the industry. The Qube 240 produces survey grade results, weighs only 930 grams, and can be easily mounted on the Trinity Pro.

The Quantum Systems Customer Portal

Register your drone and get access to the Quantum Systems Customer Portal. It will guide new users through all required steps when starting operation, also offering online classes. Our world-class support, service, and training team are standing by and ready to help in case more support is needed.

PPK Included

All Trinity Pro UAVs are equipped with an entry-level GNSS reference station, the Quantum Systems iBase. It automatically logs GNSS reference measurements on the ground to a file on a microSD card. The file enables the post processing software to do PPK processing of the data collected in-flight and drastically reduce the GNSS positioning errors.

Real corridor mapping

The QBase 3D software has been extended with additional features including the ability to take-of from and land in different locations (A/B missions). This is finally enabling true long corridor mapping and paving the way to BVLOS flights.

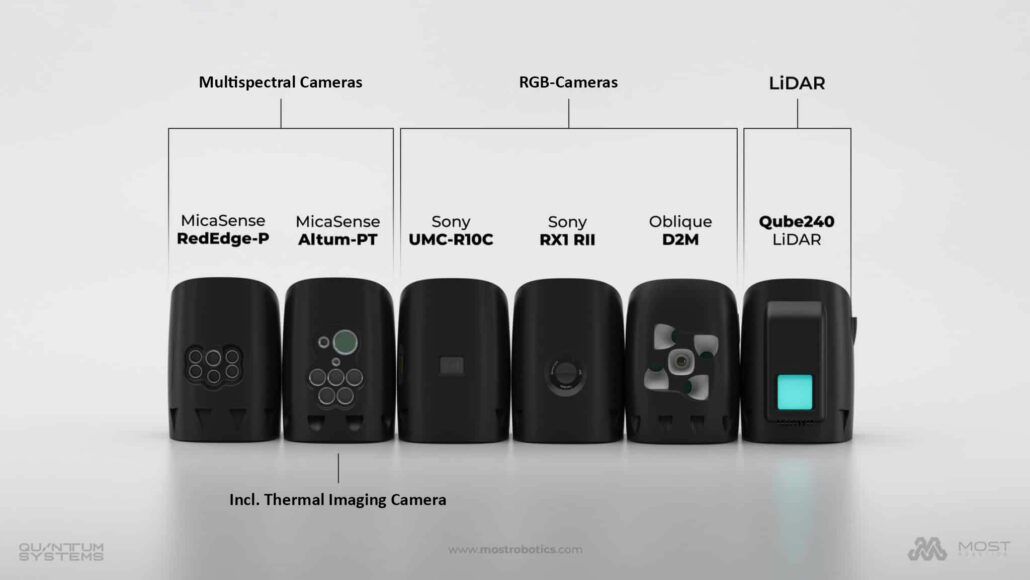

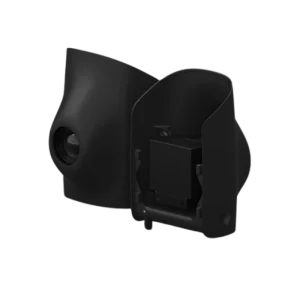

Payloads

Camera integration with the Quantum-Systems payload compartment

Easy swapping

Cameras can be easily swapped within seconds. They are securely integrated into the payload compartment that is attached to the UAS using a Quick Lock mechanism. No tools are required.

Easy access to data

Access to the captured data is easy. SD cards or microSD cards are accessible via internal or external card slots.

Well protected

All cameras are damped against in-flight vibrations to guarantee expected image quality. The eVTOL capability of the UAV allows for smooth landings, ultimately increasing the service life of the cameras.

Sony UMC-R10C

General photogrammetry payload

Sony RX1 RII

Hi-Res photogrammetry payload

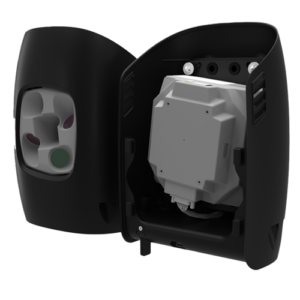

Oblique D2M

High wall mapping payload

Qube 240

LiDAR Payload

MicaSense RedEdge-P

Multispectral plus RGB payload

MicaSense Altum-PT

High Resolution Multi Spectral

Video

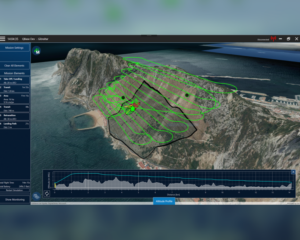

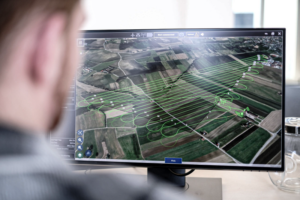

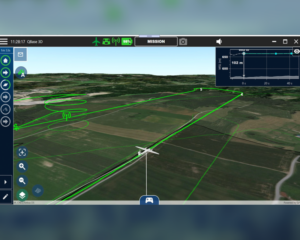

QBase 3D

Mission Planning and Monitoring Software

With the QBase 3D software, efficient flight paths are automatically generated using the mission parameters entered by the operator. The operator can adjust parameters in QBase 3D during planning at any time. During flight mode, QBase 3D provides accurate information on aircraft and mission status to ensure flight safety and mission success.

Plan, execute or adjust your aerial surveying mission with confidence anytime, anywhere with just a few clicks.

Integrated imagery and Digital Terrain Modeling (curated ESRI data)
3D mission viewing and planning
Live monitoring of mission progress and aircraft status
Integrated data post-processing

QBase 3D automatically generates safe and precise flight paths after entering the mission parameters and no-fly-zones, giving the operator peace of mind.

Detailed mission simulation, including wind forecast, battery consumption and flight time
Automated verification of mission risks or errors
Advanced Terrain Following to increase safety and data quality
Safe return paths ensure a risk-free return to home in any situation

QBase 3D saves valuable time over the entire workflow to complete a surveying job.

Mission synchronization: Manage missions across several devices with just one license
Download maps and terrain data for offline use
Advanced geotagging and data export to common photogrammetry tools
Ensure high data accuracy with built-in PPK

Free Trial Version

Learn more about the features and functions of QBase 3D by trying it out yourself, without limitations.

Get Download Link

Trinity Pro vs F90+

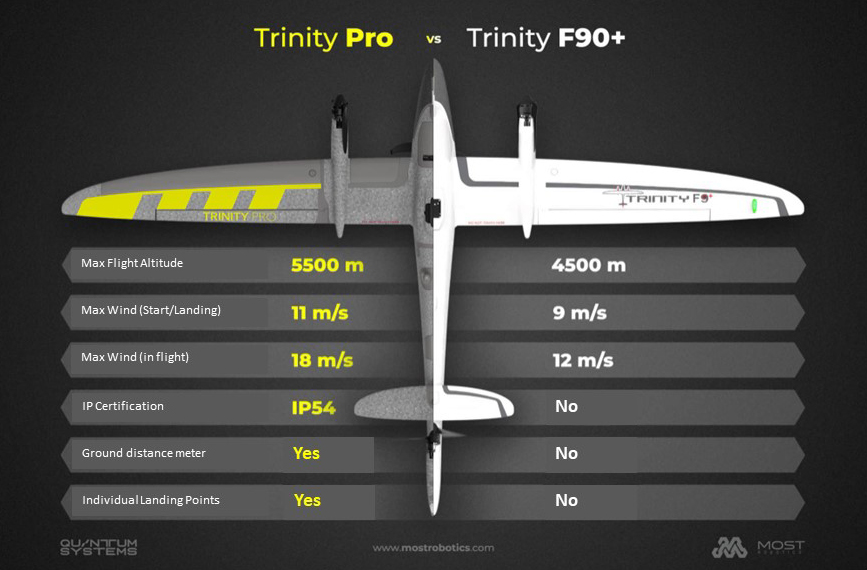

Comparison: Trinity Pro vs F90+

The new features and differences at a glance

In the world of drones, development never stands still and companies like Quantum Systems continue to set new standards. With their latest VTOL drone, the Trinity Pro, Quantum Systems has once again proven that they are one of the most innovative drone manufacturers in the industry. The Trinity Pro is the upgraded successor to the already powerful and efficient Trinity F90+. In this post, we’ll take a look at the many improvements and new features of the Trinity Pro, including how it differs from the Trinity F90+.

New hardware

The new Trinity Pro has not only been equipped with improved hardware, but also offers a variety of new features compared to its predecessor. One of the most important new features is the autopilot – the “brain” of any drone. The Trinity Pro features the Quantum Skynode Autopilot with integrated Companion Computer, which not only has more processing power and internal memory, but also offers improved connectivity. The Companion Computer has been integrated for AI-assisted tasks, which will make it much easier for users to perform workflows in the future.

The new Autopilot also enabled improved hardware integration within the Trinity Pro. This means that the components in the system exchange more information with each other than in the previous version. This allows the Trinity Pro to perform a comprehensive self-check before flight, this increases safety and gives the user more confidence in the system.

Quantum Systems has also improved the motors during the development of the Trinity Pro. These are now more powerful than their predecessor and ensure that the drone can withstand winds of up to 18 m/s, compared to 12 m/s for the previous model. In addition, the Trinity Pro can now fly to an altitude of up to 5500 m (3,4 miles) above sea level (N.N. / AMSL), which is a significant increase compared to the previous 4800 m (3 miles).

Thanks to the new motors, a vertical takeoff of up to 60 meters is now possible, compared to 30 meters for the previous Trinity F90+ version. This expands the possibilities of using the drone in environments with high obstacles, such as buildings or trees, and makes it easier to launch it safely in such situations.

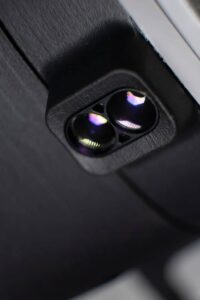

The Trinity Pro is equipped with a down facing LiDAR that enables an extremely handy feature: terrain following. This means that the drone continuously measures the distance to the ground and automatically adjusts its flight altitude; this can also be helpful during landing to estimate the distance to the ground more accurately. So unlike the previous model, there is no need to set additional waypoints to compensate for uneven terrain. This innovative feature greatly simplifies flight planning and saves time and effort.

In the event of faulty flight planning or unforeseen changes at the flight location, the down facing LiDAR also offers a new safety function. As soon as the distance to the ground is less than 30 m, the Trinity autonomously climbs to an altitude of 80 m to avoid collisions with obstacles.

The new ground range finder also enables a new landing maneuver called “A to B” landing, or remote landing. This new landing maneuver allows the Trinity Pro to land at a location other than the launch point after its mission, and can therefore optimize the overall workflow.

The new Trinity’s optimized data interface is a small but highly effective improvement. With the new USB-C port, flight data can now be downloaded in a fraction of the time compared to the Trinity F90+. While downloading data from a 90 min flight with the Trinity F90+ took about 15 minutes, it can now be done in less than 5 minutes. In other words, the Trinity Pro’s improved data interface increases efficiency and reduces time on the ground.

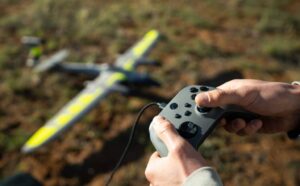

The Trinity Pro’s new controller may look familiar to some – it’s a custom Xbox Series X controller made for Quantum Systems. The new controller is not only visually impressive, but also haptically: it feels wonderful in the hand and offers a comfortable flying experience.

Usually, the controller is only used to readjust the position of the Trinity Pro during take-off & landing if necessary. For this purpose, the controller is connected to the in-house flight planning software called QBase 3D via the laptop. However, the actual mission is automated by the drone. This means that the Trinity Pro flies independently and performs all tasks without the controller having to be used during the process.

Optimized Software

With the release of the Trinity Pro, Quantum Systems not only offers improved hardware, but also optimized software that brings numerous new features and improvements.

Quantum Systems has optimized the planning algorithms in their flight planning software QBase 3D as well as added new landing figures. Previously, the Trinity had only one landing maneuver where it flew a spiral around the loading point, losing altitude in the process. This took up a lot of space and could be problematic with taller objects near the launch site. The new landing maneuvers in QBase 3D introduced, among other things, a straight-line return to the landing point. This makes both flight planning and the landing itself much less complicated. The straight-line landing figure will also be available for the Trinity F90+ in the future.

Who hasn’t experienced this? Lots of data in different storage locations can quickly lead to chaos, and once important data is lost, proper processing can no longer be performed. This is frustrating and usually costs a lot of time. That’s why Quantum Systems has come up with something for this as well. In the future, QBase 3D will not only be able to plan and monitor routes and prepare data for processing, but will also take over the management of project files. For this purpose, Quantum Systems will integrate a file manager into their flight planning software, which will make the work even easier and more efficient. Also the user interface will be modernized and refreshed a bit, so be excited about the upcoming update and experience QBase 3D in new splendor!

New Design & Certifications

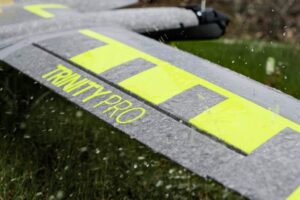

The most obvious change to the new Trinity Pro: the new design. It is now gray with neon yellow stripes, making it not only a real eye-catcher, but also making it easier to see from a distance. With the C3 Certification, you can already fly the Trinity with the A1 or A3 drone license. In addition, the Trinity Pro has received IP54 certification, which means that it is officially protected against dust and splashing water and can therefore be used safely in the rain or in dusty environments.

Not only has the Trinity changed visually, but so have its payloads. These are now in black and offer the advantage that contaminants are no longer as clearly visible as before. A total of 6 different payloads are available for the Trinity. These include a LiDAR Scanner, multispectral cameras and various RGB sensors. With this selection of payloads, the Trinity Pro is capable of handling a wide range of tasks.

The Trinity Pro also has the ability to store a Remote ID. Remote ID is a system for identifying and locating drones in real time. It allows aviation authorities and other authorized parties to obtain important information about the drone, such as its position, altitude, speed and operator ID. Thus, aerospace safety continues to be enhanced

Scope of delivery & accessories

Although the new Trinity is slightly more expensive than its predecessor, it offers significant added value thanks to the standard scope of delivery with 3 batteries, instead of just one battery as with its predecessor. One particularly welcome piece of news for owners of the Trinity F90+: all batteries, payloads and attachments are fully compatible with the Trinity Pro. So if you already own a Trinity F90+ and are thinking about upgrading, you can continue to use your existing attachments and accessories on the new Trinity Pro. Both the new spare parts of the Trinity Pro and the existing accessories of the F90+ can be used on both models.

Those who already have experience with the predecessor model, the Trinity F90+, certainly know the problem with the somewhat unwieldy transport case. But Quantum Systems has also found a remedy for this with the new Trinity Pro. In the future, a backpack will be optionally available, with which the Trinity Pro incl. 2 batteries can be transported comfortably on the back. This is particularly advantageous if the starting point can only be reached via a long walk.

Also included is the iBase Station, a PPK (Post Processing Kinematic) base station from Quantum Systems. An anemometer is also included, which can be used to measure the current weather conditions on site and thus ensure a safe launch.

In the future, more accessories will be available for the Trinity Pro, such as a parachute that will allow the Trinity Pro to be used safely in urban areas.

Conclusion

The Trinity Pro from Quantum Systems is an improved version and a worthy successor to their already powerful Trinity F90+ drone. The numerous small changes and improvements add up to a significant increase in efficiency and safety.

Quantum Systems has responded to valuable feedback from the past, potential improvements to the Trinity F90+ have been identified and targeted. The result is the innovative and future-proof Trinity Pro. With its new more powerful hardware as well as optimized software, the Trinity Pro offers even greater flexibility, intelligence and ease of use. The new customer portal and Customer Success Team also ensure an outstanding customer experience as well as a maximum success rate in the field.

The Trinity Pro is “designed to evolve” and will continue to get better in the future with additional accessories and the ability to add AI capabilities. Quantum Systems is committed to continuously improving the Trinity Pro to meet the needs of the evolving drone industry. This makes the Trinity Pro a future-proof investment for those looking for a reliable and powerful VTOL for large-scale mapping work.

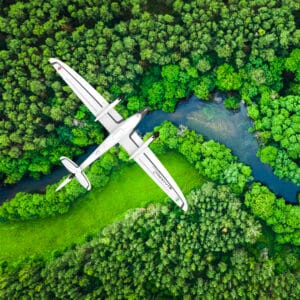

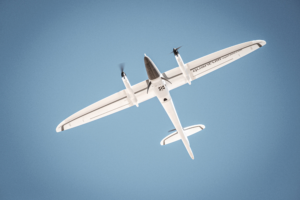

Trinity F90+ Powered Lift RPAS

Quantum Systems’ new Trinity F90+ is a VTOL surveying drone with 90 minutes flying time. The choice for industry professionals looking for long range, accurate, reliable aerial mapping.

With industry-grade durability and in-flight stability, the Trinity F90+ from Quantum Systems is suitable for the most complex and challenging of projects with safe landing and take off using vertical take off and landing (VTOL) technology.

The eVTOL fixed-wing mapping drone for professionals

Eliminate the risks to both aircraft and personnel that hand launch and glide-to-land fixed-wing aircraft have. Quantum’s Trinity F90+ uses small propellers during take off and landing to give a smooth and safe vertical take-off and landing.

Now compatible with Propeller PPK workflow

High performance, high accuracy aerial mapping solution combines the vertical take-off and landing (VTOL) Trinity F90+ drone, Propeller AeroPoints ground control and software. Available throughout Australia, New Zealand and Southeast Asia from Aptella.

Propeller is a leading supplier of cloud-based aerial mapping software and smart ground control points, AeroPoints, that enable high accuracy, post processed kinematic (PPK) data for survey drones.

Propeller has now announced a partnership with Quantum Systems, a German-based manufacturer of the Trinity F90+ survey drone. The agreement enables Trinity F90+ users to integrate the Propeller PPK workflow to their aerial mapping projects, utilising the AeroPoints ground control and web-based Aero software. Likewise, Propeller users can now integrate the leading vertical take off and landing solution to their fleet with the Trinity F90+.

eVTOL mapping UAV with extended flight time of 90 min
Intuitive Mission planning and implementation
RGB, Multispectral, Thermal & LiDAR payloads available
