General Purpose Sonde

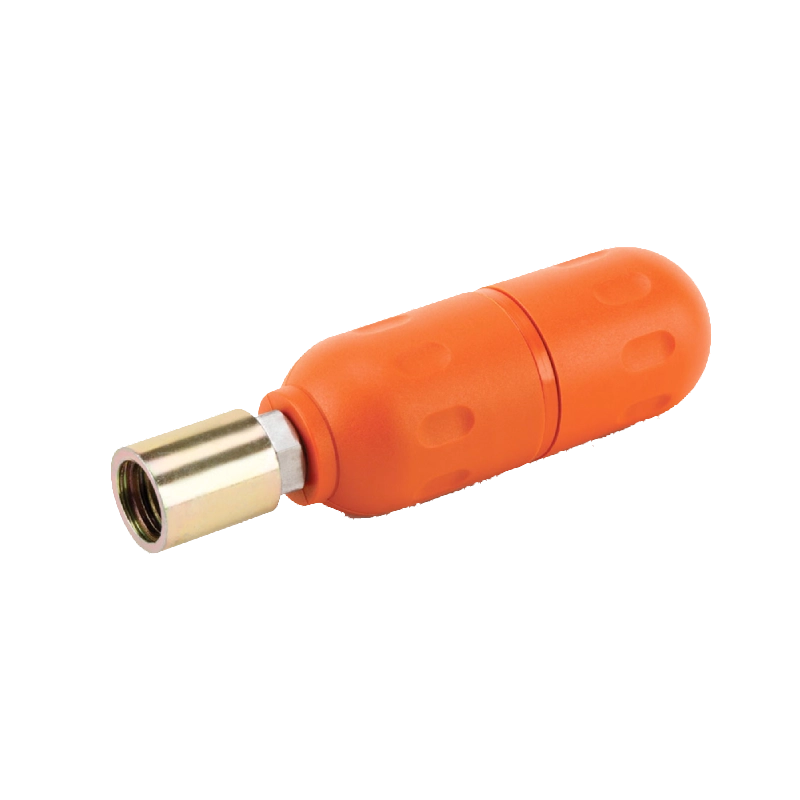

The C.Scope 8KHz & 33KHz Sonde is a small battery powered transmitter which, in typical use, would be screwed onto the end of a drain rod (a range of drain rod adaptors are available), and pushed down a pipe so that the pipe direction can be traced using the C.Scope locator set to ‘Signal Generator Mode’. The location of a pipe blockage can be identified using this system, with enormous cost saving potential.

Request more information about this product
Categories:
Brand:

Description

  • Orange case to identify the 33kHz version.
  • 33kHz transmit signal allowing detection and tracing.
  • Simple to use.
  • Very robust.
  • Single AA battery operation.
  • Fully weatherproof design to IP68.
  • Adaptors available for different Drain Rod types.

Specifications

Product Name
General Purpose Sonde 33kHz

Part No.
YIRS-33

Construction
Waterproof robust plastic.

Operating frequency
32768Hz continuous.

Range
5 – 7 metres dependant on Locator.

Dimensions
38mm diameter
102mm length.

Fitting
M10 stud

Battery
1 x AA (IEC type LR6) typically giving up to 50 hours intermittent use at 20C.

Downloads

Manual
