Signal Injector

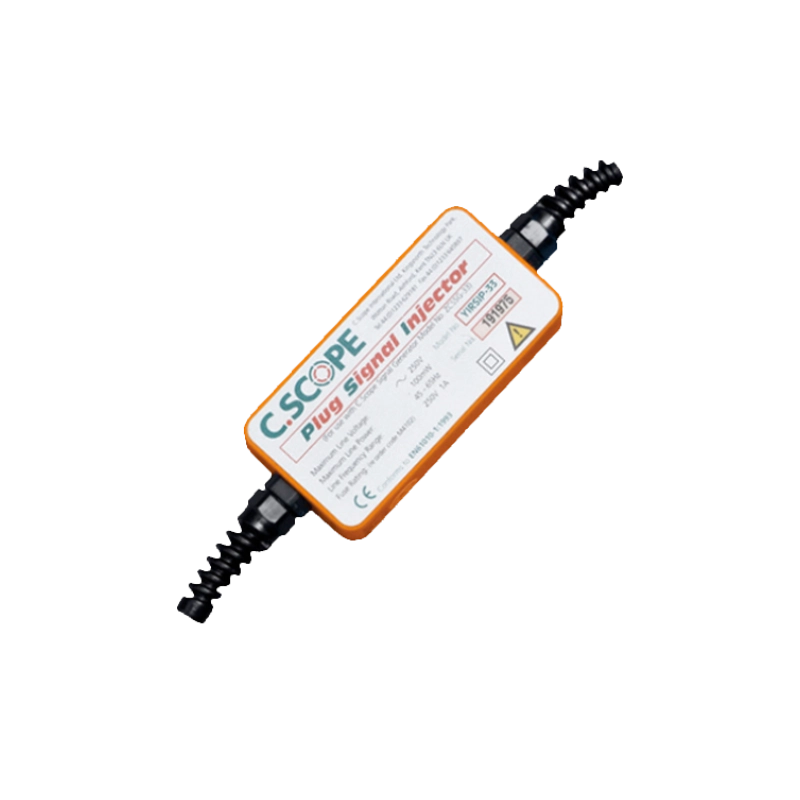

The C.Scope Signal Injector is an accessory which when connected to a C.Scope Signal Generator or Transmitter applies a signal safely to an electrical system via a conventional 3-pin power socket. This signal will then be detectable on the buried supply cable outside the building and any supply cables within the property.

To transmitted signal can then be detected by a C.Scope Cable Avoidance Tool or Precision Pipe and Cable Locator.

Please contact us or download the brochure if you would like to know more about the C.Scope accessories.

Request more information about this product
Categories:
Brand:

Description

  • Highly efficient transfer of Signal Generator signal to electricity supply cable.
  • Isolates Signal Generator from electrical supply for safety.
  • UK or Schuko plug types.
  • Fully weatherproof design to IP65.
  • Can be used with all C.Scope Locators, Generators and Transmitters.

Specifications

Product Name
Signal Injector

Part No.
YIRIP-33-8

Dimensions
Box: 100mm x 50mm x 25mm
Input Lead: 1m
Output Lead: 1.5m

Construction
Encapsulated, robust housing
Moisture / dust resistant to IP54

Electrical Output (Mains side)
Electrical Isolation: Class II (Double Insulated)
Mains Plug Connector: UK, 3 pin to BS1363, load between Live and Earth or 2 pin European Shuko style
Maximum Voltage: 250 V rms
Maximum Load: <10mA (predominantly capacitive)
Frequency range: 45-65 Hz

Electrical Input (Signal Generator side)
Connector: 3 pin XLR male (industry standard)
Maximum Voltage: 42 V rms
Maximum Power: <250mW when driven from SGA or SGV
Input Impedance: 2000 Ohms
Frequency: 33 kHz
