Locator One is a device engineered to autonomously monitor your construction grounds. By placing a fleet of devices at settlement rods, deformation observations are collected resulting in high accurate data delivered to the Basetime dashboard or a preferred information system.
Locator One uses GNSS and RADAR sensors to monitor and present both the vertical movement of the original ground level and the height and thickness of the added sand layer. The automated sensor measures the exact position of the top of a settlement rod with the precision of – at most – 5mm in the Z direction and 3mm in the X-Y direction.
Accuracy
Measures with the precision of 5mm in the Z direction and 3mm in the X-Y direction. An autonomous device that guarantees consistent data and 95% uptime.
(assuming completely unobstructed visibility from 10 degrees above the horizon)
Predictability
Collection and calculation of accurate data on pre-defined timestamps offers prediction of subsidence and settlement allowing for precautionary actions.
Safety
Improves construction site safety by eliminating unnecessary human involvement, in-person site visits and use of 4X4 cars on terrains.
Sustainability
Powered by solar energy and a super capacitor, Locator One functions autonomously and eliminates the need for maintenance rides, reducing CO2 during operations.
Installation

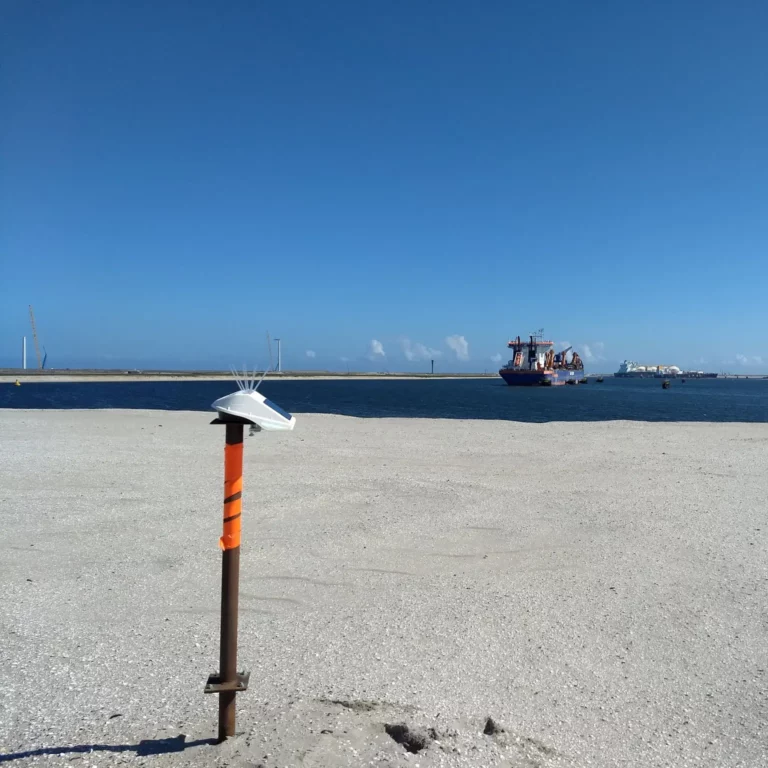

A fleet of Locator One devices are mounted on settlement rods to determine the height of the baseplates, which are positioned at the original ground level.
Monitoring

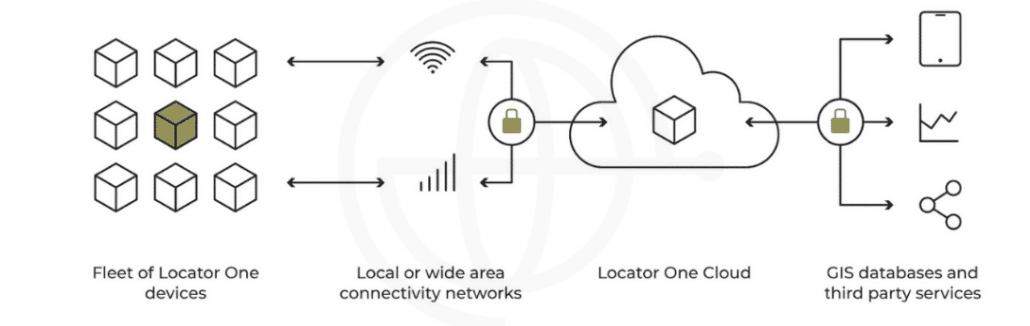

The devices send their observations and metadata through an IoT network to our cloud. After geodetic adjustments and calculations, the data is delivered.
Dashboard
Results are displayed on the Basetime dashboard, or preferred environment through an API. In joint consultation, we adapt the data to the contractors working method.
Locator One delivers accurate and reliable geodetic data through the Basetime dashboard or your preferred information system. Compared to the traditional method of collecting geodetic observations, the automatic device offers numerous advantages.
